DIY Kreg Jig Base - Build Plans

Ready to TURBOCHARGE your Kreg R3 Jig?

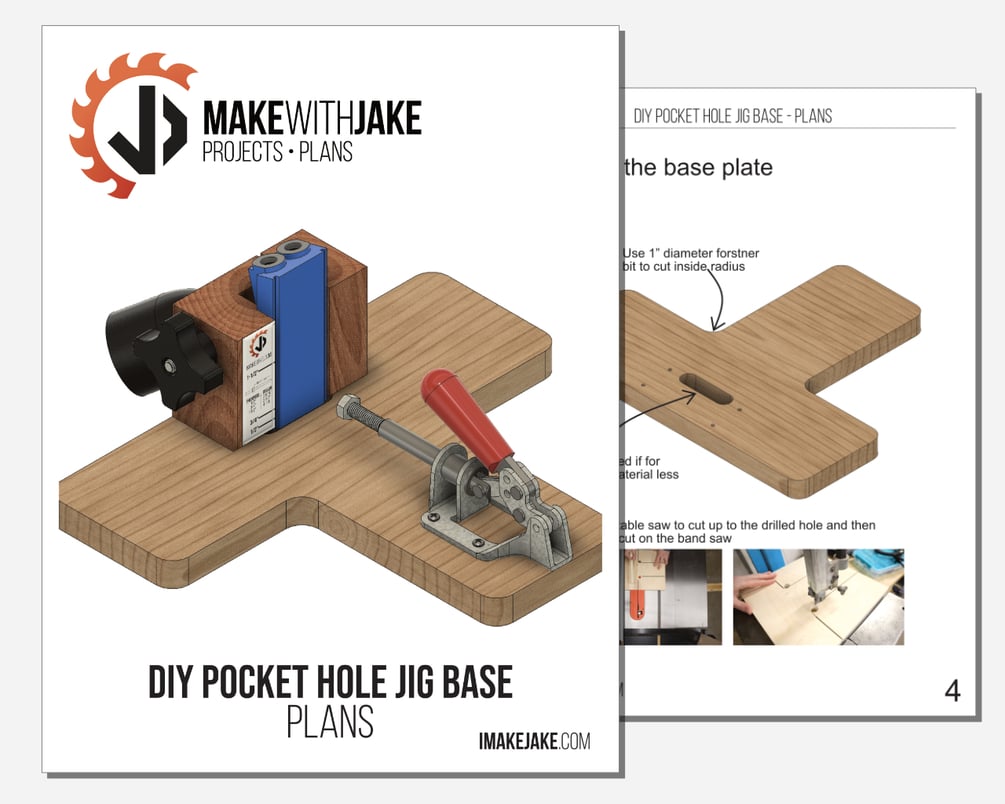

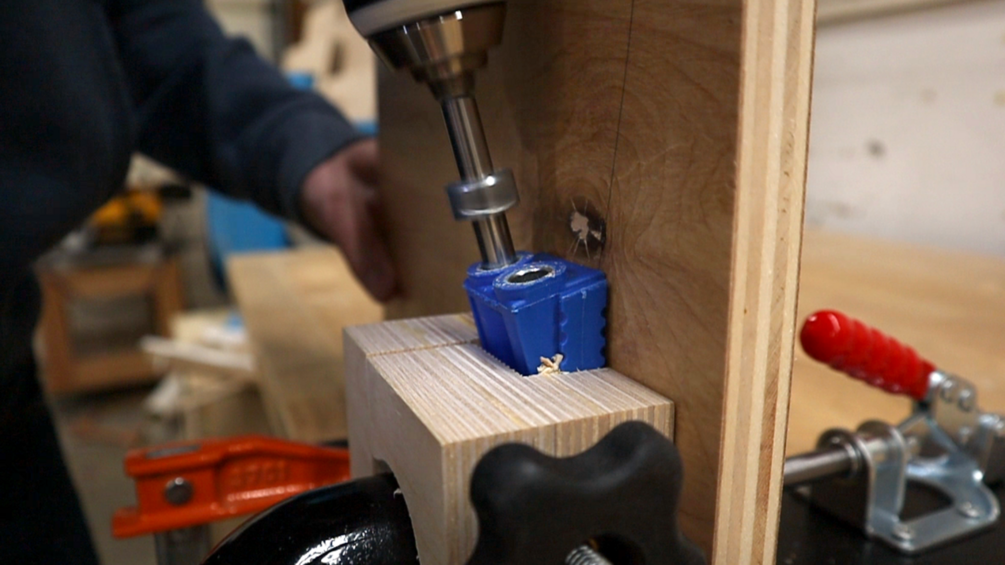

This is a digital download (PDF) of the full color plans for building a DIY Kreg Jig Base for the Kreg R3 pocket hole system. Plans can be easily modified to accommodate other brands of pocket hole jigs as well. The jig built from these plans is super heavy duty and makes drilling pocket holes with the smaller pocket hole jigs a breeze!

These plans are broken down into steps that even a novice woodworker can follow! Each component includes detailed dimensioned drawings in fractional inches for easy reading. If you would like to check out the full build video, head on over to:

The required materials for this project are:

• (1x) 12" x 12" , 3/4" thick plywood

• (1x) 2" x 3" x 4" hardwood (OR can be glued from scraps cut from the 3/4" plywood!)

• (1x) toggle clamp

• (1x) carriage bolt

• (1x) threaded knob

• (1x) Kreg R3 Pocket Hole Jig

Interested in modifying these plans in your favorite 3D modeling program?  Then check out the PDF + 3D Model option and download a *.step file!
